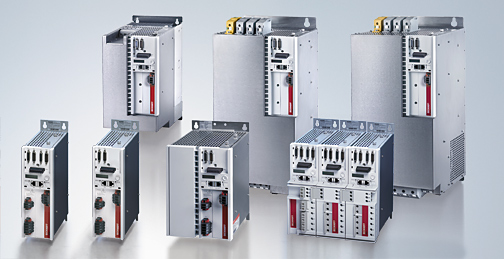

| AX5000 | Digital Compact Servo Drives
|
|
The EtherCAT drives
The AX5000 Servo Drive product line from Beckhoff sets new standards in drive performance. The AX5000 series is available in single- or multi-channel form and is optimised for exceptional functionality and cost-effectiveness. Featuring integrated, high-speed control technology with a current control cycle of down to 62.5 µs, the AX5000 drives support fast and highly dynamic positioning tasks. The drives utilise EtherCAT as a high-performance communication system, providing an ideal interface with PC-based control technology while supporting coupling with other fieldbus systems.
The 2-channel Servo Drives with variable motor output current optimise the packaging density and the cost per drive channel. The compact design and simple and safe installation through the "AX-Bridge" quick connection system significantly simplify control cabinet assembly.
Technical highlights
fast control technology
current control: min. 62.5 µs
speed control: min. 125 µs
position control: min. 250 µs
high-speed EtherCAT system communication
1- or 2-channel Servo Drive
optimised for multi-axis applications
variable motor output current in 2-channel drives
active DC-Link and brake energy management
variable motor interface with
multi-feedback interface
flexible motor type selection
scalable, wide range motor current measurement
OCT (One Cable Technology)
high-speed capture inputs
wide voltage range 100…480 V AC
integrated mains filter
integration of safety functions (optional)
restart lock
TwinSAFE: intelligent safety functions for Motion Control
compact design for simple control cabinet installation (300 mm depth)
AX-Bridge - the quick connection system for power supply, DC-Link and control voltage
variable cooling concept (fanless, forced cooling, cold plate) |
|
